Chapter 4: Moving Charges and Magnetism Class 12 Physics Notes

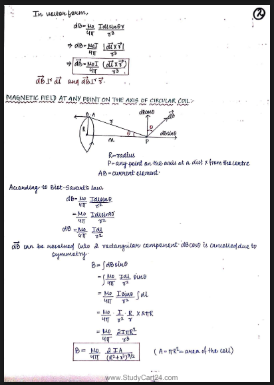

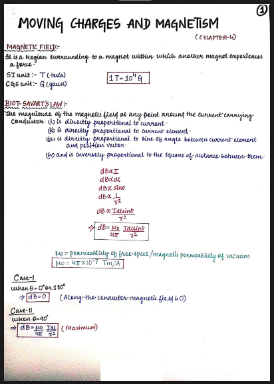

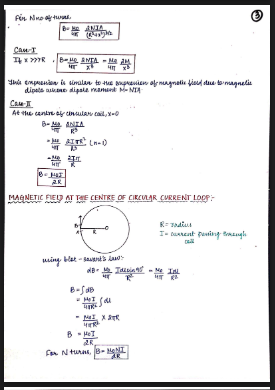

Images of Moving Charges and Magnetism Notes

Why Choose These Handwritten Notes?

1. Free and Accessible: Download without any cost or registration.
2. Quality Content: Written by a topper using colored pens for clarity.
3. Concise and Detailed: Covers all essential topics with solved examples.
4. Preview Before Downloading: Ensure content quality before you download.
5. Compact File Size: Only 10 MB for easy storage.

Chapter Summary: Moving Charges and Magnetism

1. Introduction to Moving Charges and Magnetism

• Electric currents produce magnetic fields, as discovered by Hans Christian Ørsted.
• This chapter focuses on the relationship between moving charges and the magnetic fields they create.

2. Magnetic Force

• A moving charge in a magnetic field experiences a force: F=q(v×B)\mathbf{F} = q(\mathbf{v} \times \mathbf{B}) where $q$ is charge, $\mathbf{v}$ is velocity, and $\mathbf{B}$ is the magnetic field.
• Direction determined by the right-hand rule.

3. Motion of a Charged Particle in a Magnetic Field

• Circular motion occurs when velocity is perpendicular to the magnetic field.
• Radius of the path: r=mvqBr = \frac{mv}{qB} where $m$ is mass, $v$ is velocity, $q$ is charge, and $B$ is the magnetic field.

4. Biot-Savart Law

• Magnetic field due to a current element: dB=μ04πI⋅dl×rr3d\mathbf{B} = \frac{\mu_0}{4\pi} \frac{I \cdot d\mathbf{l} \times \mathbf{r}}{r^3} where $\mu_0$ is the permeability of free space.
• Applications: Magnetic field of a straight conductor, circular loop, etc.

5. Ampere’s Circuital Law

• Magnetic field around a closed loop: ∮B⋅dl=μ0Ienc\oint \mathbf{B} \cdot d\mathbf{l} = \mu_0 I_{enc} where $I_{enc}$ is the current enclosed by the loop.
• Applications: Magnetic field due to a solenoid and toroid.

6. Force Between Parallel Currents

• Two parallel conductors carrying currents exert forces on each other.
• Force per unit length: Fl=μ0I1I22πd\frac{F}{l} = \frac{\mu_0 I_1 I_2}{2\pi d} where $d$ is the distance between the wires.

7. Magnetic Dipole

• Magnetic dipole moment: m=NIA\mathbf{m} = NIA where $N$ is the number of turns, $I$ is current, and $A$ is area.
• Torque on a dipole in a magnetic field: τ=m×B\tau = \mathbf{m} \times \mathbf{B}

Important Topics of Moving Charges and Magnetism Notes

FAQs: Moving Charges and Magnetism Class 12 Notes

1. What are Moving Charges and Magnetism Class 12 Short Notes?

These are concise handwritten notes summarizing the key concepts of the chapter, including formulas, solved examples, and applications.

2. Is Moving Charges and Magnetism an Easy Chapter?

Yes, with proper understanding of fundamental laws like Biot-Savart and Ampere’s Circuital Law, this chapter becomes manageable.

3. What is the Weightage of Moving Charges and Magnetism in Class 12?

This chapter carries significant weightage, typically contributing 7-10 marks in board exams.

4. What is the Direction of Moving Charges and Magnetism?

The direction of the magnetic field is determined using the right-hand thumb rule for current-carrying conductors.

How to Download Moving Charges and Magnetism Class 12 Notes PDF

Click on the link below to download your free copy of these handwritten notes:

Download Moving Charges and Magnetism Class 12 Notes PDF (10 MB)

Highlights of These Notes

1. File Details:
   • Pages: 19
   • Size: 10 MB
   • Format: PDF
2. Content Features:
   • Written with colored pens for clarity.
   • Covers all important topics with diagrams and solved examples.
3. Topics Covered:
   • Magnetic Force
   • Biot-Savart Law
   • Ampere’s Circuital Law
   • Motion of Charged Particles
   • Magnetic Dipole

Important Questions from Moving Charges and Magnetism

1. State Biot-Savart Law and its applications.
2. Derive an expression for the magnetic field at the center of a circular loop.
3. Explain Ampere’s Circuital Law with an example.
4. Numerical Problems:
   • Calculate the force per unit length between two parallel wires carrying 10 A each, separated by 5 cm.
   • Determine the radius of the circular path of a 5 MeV proton in a magnetic field of 0.1 T.

Additional Resources

For more study materials and practice questions, check out:

• NCERT Solutions for Class 12 Physics
• Handwritten Notes PDFs for all Physics chapters
• Previous Year Questions with solutions

Conclusion

These Moving Charges and Magnetism Class 12 Notes PDF are perfect for self-study and exam preparation. Their handwritten format, combined with detailed explanations and illustrative diagrams, ensures effective learning. Download these notes today and ace your exams!
